We integrate dispatchable hybrid DER systems that ship factory-tested and scale by adding units. Bespoke field integration is where microgrid projects lose months and reliability.
Whether it’s a single project or a portfolio of systems across multiple sites, our solutions are scalable, efficient, and built for rapid deployment.
Generation (ground-mount or carport PV, inverters and racking, pre-vetted genset controllers and fuel storage)
Storage (BESS)
Supervisory controls / EMS (compatible with SCADA, SunSpec, DNP3, Modbus and other protocols)
End-to-end integration testing from supervisory controller down through controllers, meters, and relays
Factory acceptance testing of the complete sequence of operations and all performance modes
MegaBox and AutoBox are built for utility-scale and utility-grade performance.
BoxPower’s largest microgrid kit configuration.
System Voltage: 480V up to 35kV, 3-PH
Load: Up to 30 MW
Battery Storage: 1.25 MW - 20 MW, 5 MWh - 80 MWh
Gen: 1 MW - 20 MW
Solar PV (AC): Up to 20 MW-AC
Solar PV (DC): Up to 40 MW-DC
BoxPower’s standardized answer for mid-size energy needs.
System Voltage: 120/240V split-phase, 208-480V 3-phase (3W or 4W)
Load: Up to 3 MW
Battery Storage: 72 kW - 3,000 kW, 200 kWh - 6,000 kWh
Gen: 40 kW - 3,150 kW
Solar PV (AC): 25 kW-AC up to 3,000 kW-AC
Solar PV (DC): 20 kW-DC up to 6,000 kW-DC

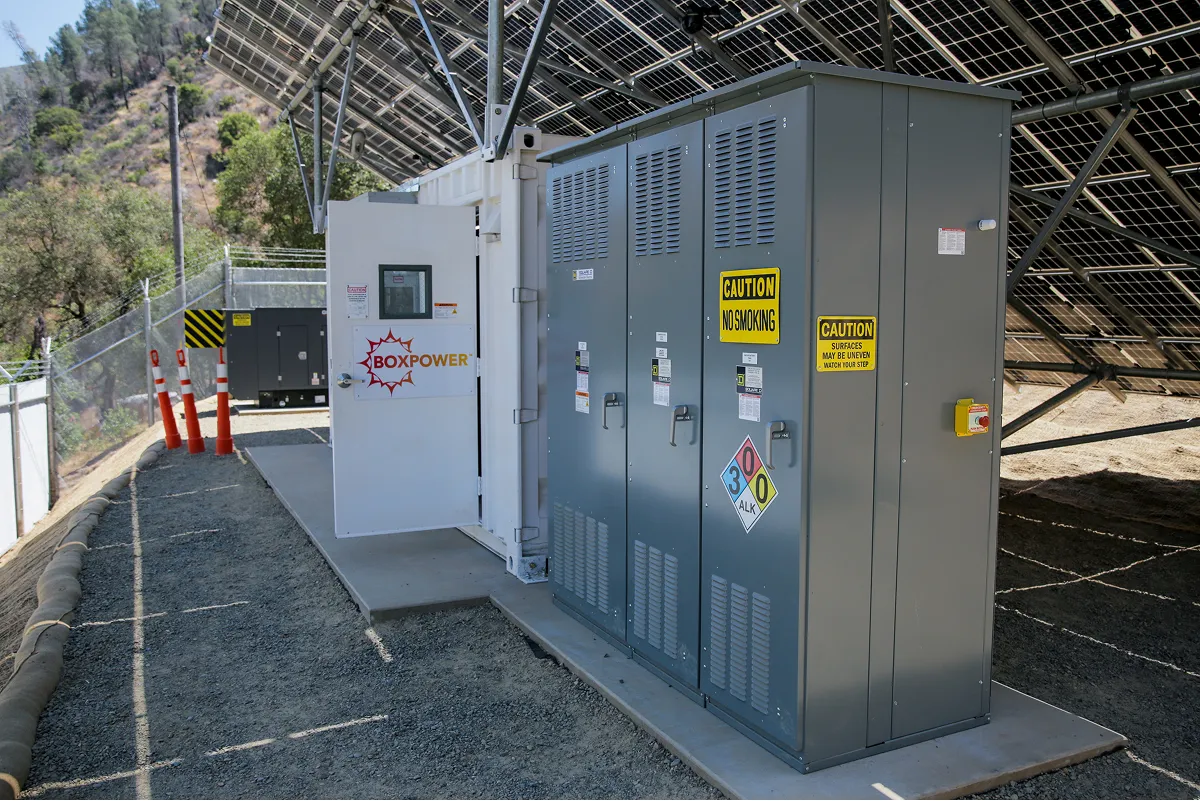

PG&E replaces high-risk distribution lines with standardized microgrid systems instead of costly line-hardening. BoxPower has deployed the same pre-engineered, factory-tested kit architecture nine times across PG&E's territory, with nine more in development. That repeatability is what lets each new site move faster than the last.
